Power Window SUBSWITCH Removal/Installation: Rear-side

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

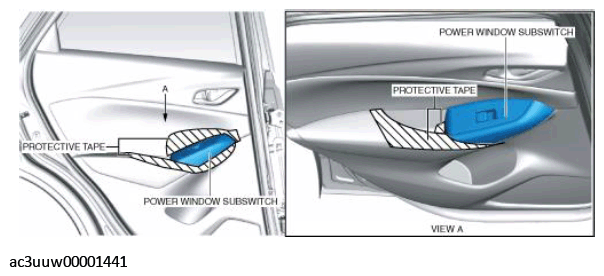

  2. Affix the protective tape to the position shown in the figure to prevent scratches and damage.
    Fig 1: Affixing Protective Tape To Scratches And Damage Position
    G11434303Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When detaching the tabs, move the remover tool gradually. If the remover tool is moved too extensively, the welded area of the power window subswitch panel could be damaged.

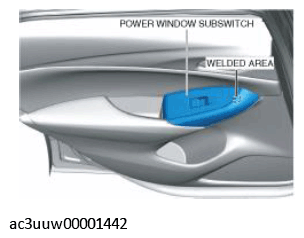

    Fig 2: Locating Power Window Subswitch Panel Welded Damaged Area
    G11434304Courtesy of MAZDA MOTORS CORP.
  3. Insert the remover tool into the position shown in the figure.

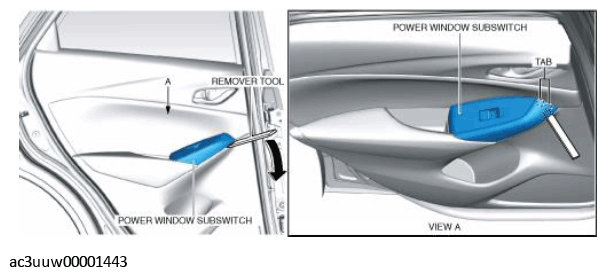

    Fig 3: Inserting Remover Tool
    G11434305Courtesy of MAZDA MOTORS CORP.
  4. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
  5. While pulling the power window subswitch in the direction of arrow (1) shown in the figure, press the rear door trim in the direction of arrows (2) and detach the tabs.

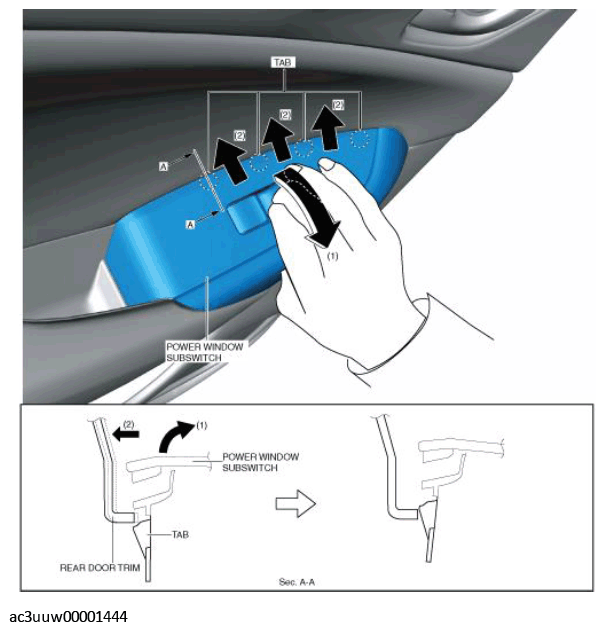

    Fig 4: Pressing Rear Door Trim
    G11434306Courtesy of MAZDA MOTORS CORP.
  6. Insert the remover tool into the position shown in the figure.

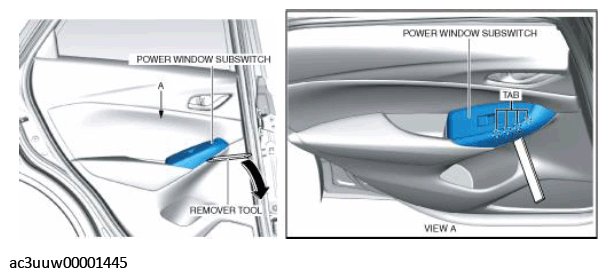

    Fig 5: Inserting Remover Tool Into Position
    G11434307Courtesy of MAZDA MOTORS CORP.
  7. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
  8. Insert the remover tool into the position shown in the figure.

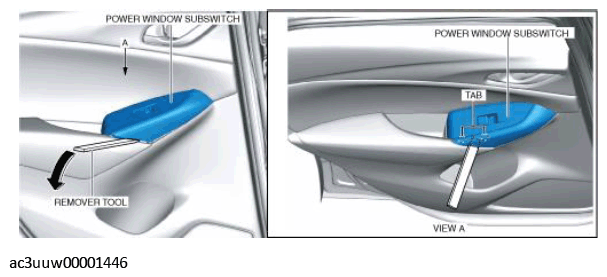

    Fig 6: Moving Remover Tool
    G11434308Courtesy of MAZDA MOTORS CORP.
  9. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
  10. Insert the remover tool into the position shown in the figure.

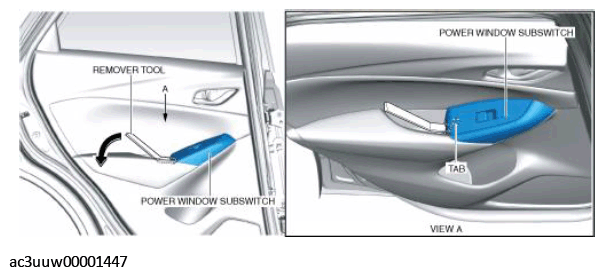

    Fig 7: Detaching Tabs
    G11434309Courtesy of MAZDA MOTORS CORP.
  11. Move the remover tool in the direction of the arrow shown in the figure and detach the tab.
  12. Disconnect the connector.

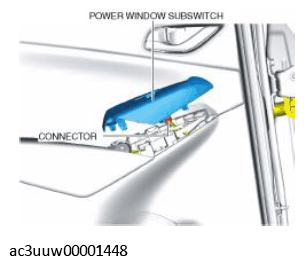

    Fig 8: Disconnecting Connector
    G11434310Courtesy of MAZDA MOTORS CORP.
  13. Detach the tabs and remove the power window subswitch from the power window subswitch panel.

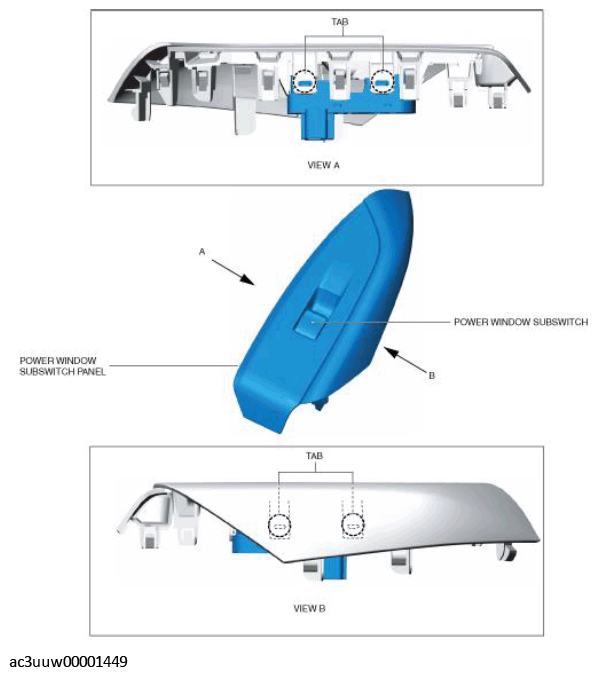

    Fig 9: Removing Power Window Subswitch From Power Window Subswitch Panel
    G11434311Courtesy of MAZDA MOTORS CORP.
  14. Install in the reverse order of removal.
