Trunk Board Removal/Installation: Notes

  1. Remove the trunk board in the direction of arrow shown in the figure.

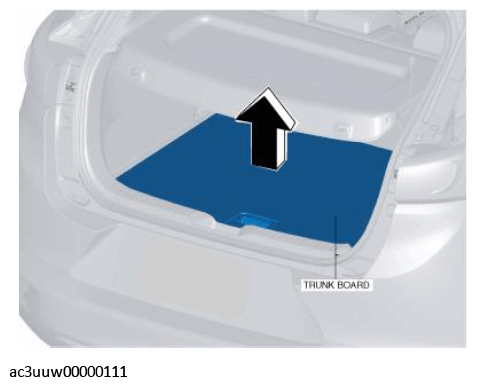

    Fig 1: Removing Trunk Board
    G11434612Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
