Passenger-Side Lower Panel Removal/Installation: Installation

  1. Move the passenger-side lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and attach the clips, hooks, tab, and guide to the dashboard.

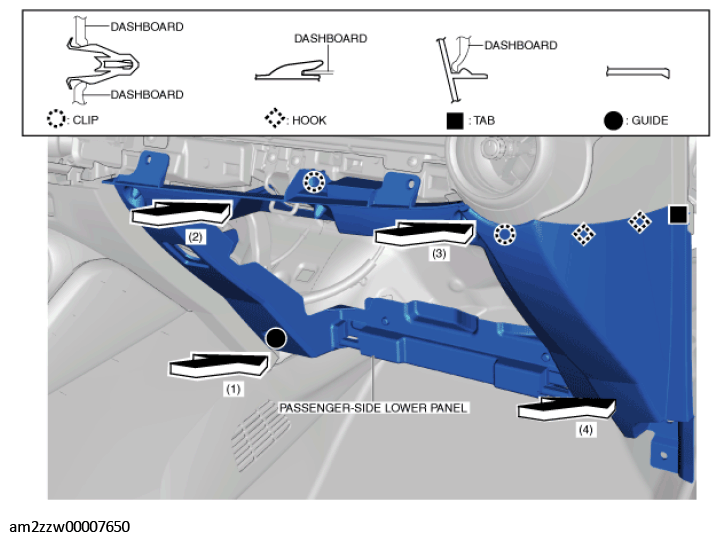

    Fig 1: Moving Passenger-Side Lower Panel
    G11434575Courtesy of MAZDA MOTORS CORP.
  2. Assemble the passenger-side lower panel to the dashboard and tighten the bolt and screws temporarily.

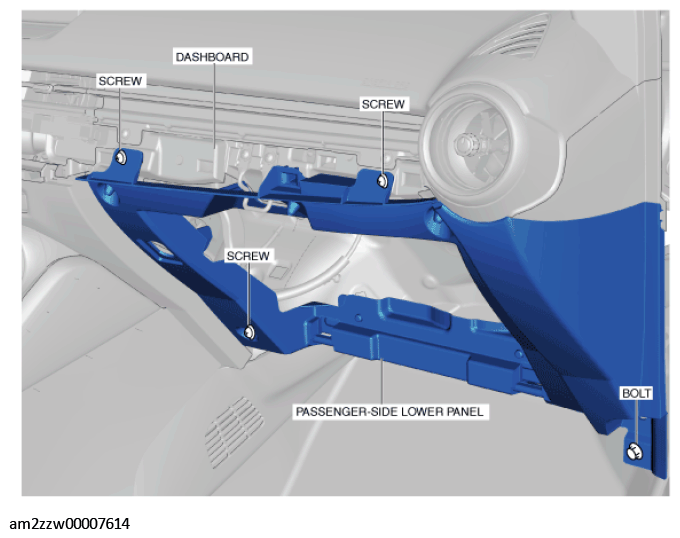

    Fig 2: Assembling Passenger-Side Lower Panel To Dashboard
    G11434576Courtesy of MAZDA MOTORS CORP.
  3. Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  4. Measure the gaps between the glove compartment and the passenger-side lower panel and verify that the measured value is within the standard value.
    • If not within the standard value, move the passenger-side lower panel and adjust the installation position.

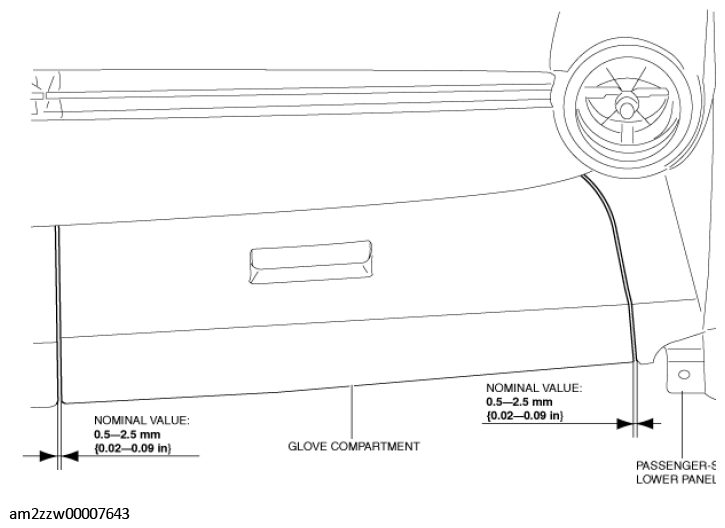

    Fig 3: Measuring Gaps Between Glove Compartment And Passenger-Side Lower Panel
    G11434577Courtesy of MAZDA MOTORS CORP.
  5. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  6. Tighten the bolt and screws completely.

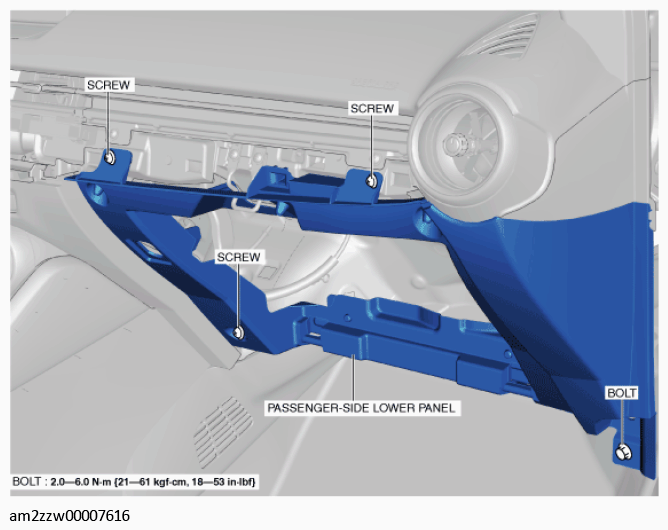

    Fig 4: Passenger Side Lower Panel Bolt And Screws
    G11434578Courtesy of MAZDA MOTORS CORP.
  7. Install the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
