Liftgate Recess Removal/Installation

  1. While pressing the liftgate recess in the direction of arrows (1) shown in the figure, move the liftgate recess in the direction of arrow (2), and detach the liftgate recess tab from the liftgate.

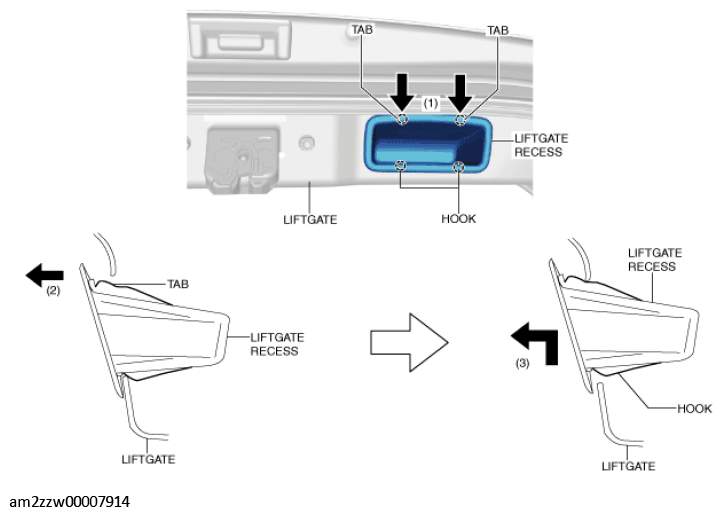

    Fig 1: Pressing Liftgate Recess
    G11434553Courtesy of MAZDA MOTORS CORP.
  2. Remove the trunk lid recess in the direction of the arrow (3) shown in the figure avoiding hooks.
  3. Install in the reverse order of removal.
