Front Console Box Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (See CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift bezel (See SHIFT BEZEL REMOVAL/INSTALLATION .)
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
  3. Insert a remover tool in the position indicated by the arrow (1) in the figure and detach clip.

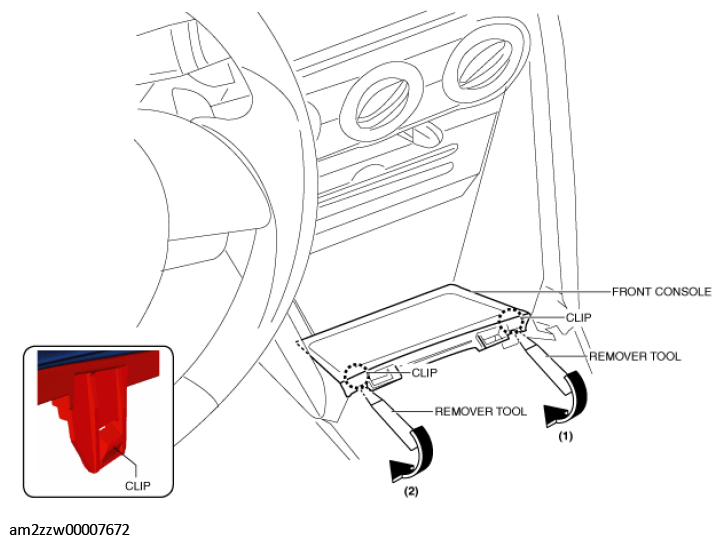

    Fig 1: Inserting Remover Tool In Position
    G11434516Courtesy of MAZDA MOTORS CORP.
  4. Insert a remover tool in the position indicated by the arrow (2) in the figure and detach clip.
  5. Remove the front console box in the direction of the arrow shown in the figure while detaching guide.

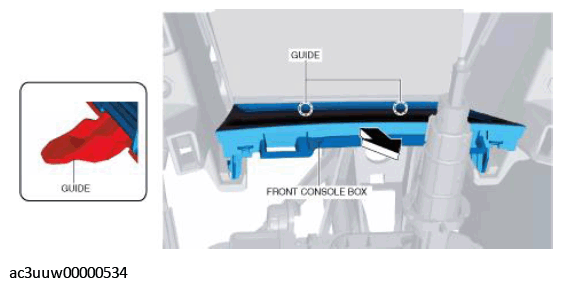

    Fig 2: Removing Front Console Box
    G11434517Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
