UP switch, DOWN switch, INFO button

Measure the resistance between steering switch terminals 3D and 3L under the following conditions.

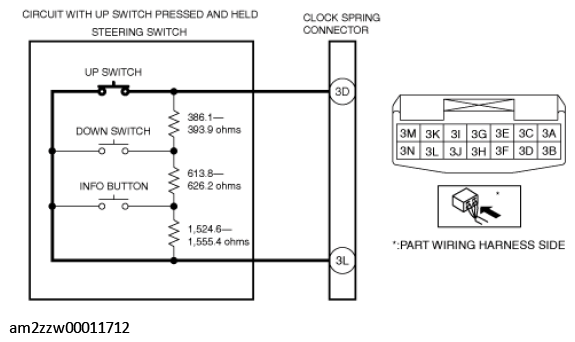

- Resistance with UP switch pressed and held
  - 0 ohms
  Fig 1: Steering Switch Circuit Diagram (0 Ohms)
  Courtesy of MAZDA MOTORS CORP.

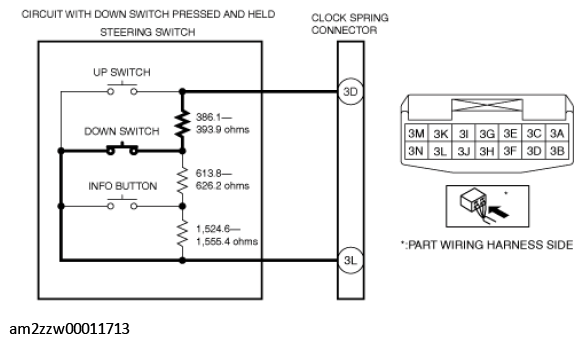

- Resistance with DOWN switch pressed and held
  - 386.1-393.9 ohms
  Fig 2: Steering Switch Circuit Diagram (386.1-393.9 Ohms)
  Courtesy of MAZDA MOTORS CORP.

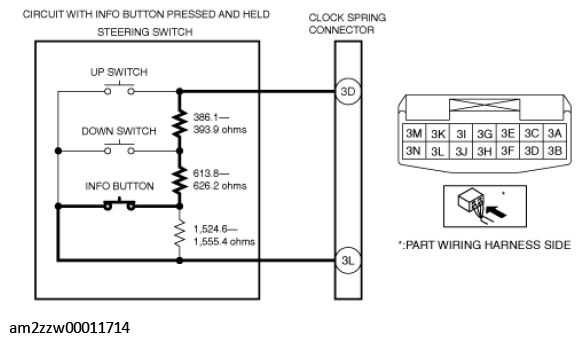

- Resistance with INFO switch pressed and held
  - 999.9-1, 020.1 ohms
  Fig 3: Steering Switch Circuit Diagram (999.9-1, 020.1 Ohms)
  Courtesy of MAZDA MOTORS CORP.

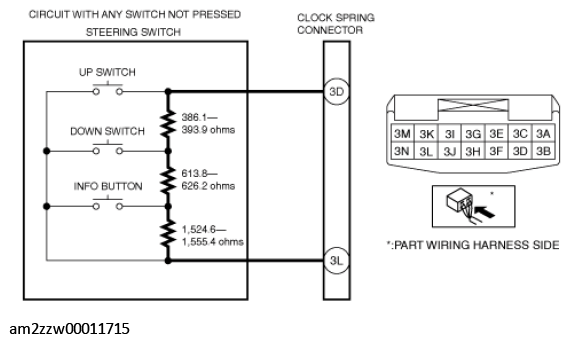

- Resistance with any switch not pressed
  - 2, 524.5-2, 575.5 ohms
  Fig 4: Steering Switch Circuit Diagram (2, 524.5-2, 575.5 Ohms)
  Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
