Microphone Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
  3. While pressing tabs of the voice recognition microphone in the direction of the arrows (1) shown in the figure using a tape-wrapped flathead screwdriver, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach tabs of the voice recognition microphone from the front map light.

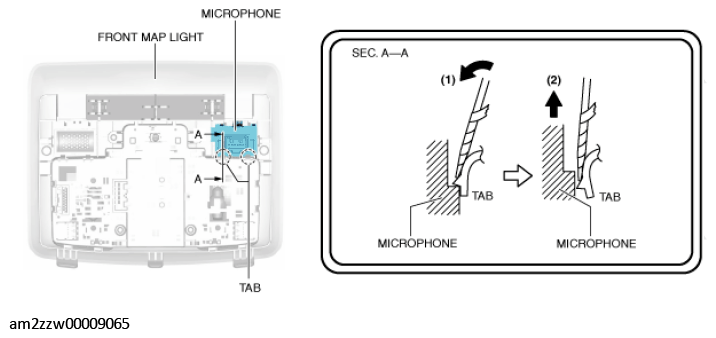

    Fig 1: Pressing Tabs Of Voice Recognition Microphone
    G11434031Courtesy of MAZDA MOTORS CORP.
  4. While pulling tab of the voice recognition microphone in the direction of the arrow (1) shown in the figure, pull the voice recognition microphone in the direction of the arrow (2) shown in the figure to detach tab of the voice recognition microphone from the front map light.

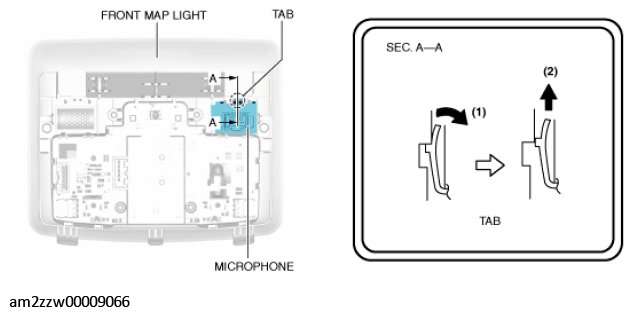

    Fig 2: Detaching Tab Of Voice Recognition Microphone From Front Map Light
    G11434032Courtesy of MAZDA MOTORS CORP.
  5. Remove the microphone.
  6. Install in the reverse order of removal.
