Fresh-air Duct Removal Note

  1. While moving the tabs in the direction shown in the figure, rotate the fresh air duct.

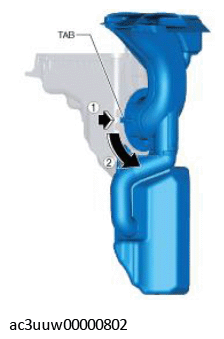

    Fig 1: Rotating Fresh Air Duct
    G11437040Courtesy of MAZDA MOTORS CORP.
  2. Remove the fresh-air duct.
