Oil Pump Driven Sprocket Installation Note

  1. Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.

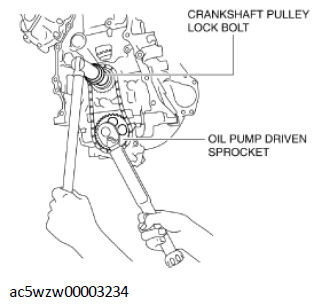

    Fig 1: Assembling Crankshaft Pulley Lock Bolt
    G11429970Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pump driven sprocket.

    Tightening torque

    Black bolt: 20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}

    Silver bolt: 26-36 N.m {2.7-3.6 kgf.m, 20-26 ft.lbf}

  3. Remove the temporarily assembled crankshaft pulley lock bolt.
