No. 1 Engine Mount Rubber, Front Crossmember Component Removal Note: Notes

  1. Loosen the No. 1 engine mount rubber installation bolt (front crossmember side).

    2WD

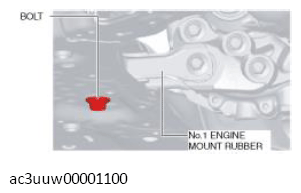

    Fig 1: No. 1 Engine Mount Rubber And Bolt - 2WD (Front Crossmember Side)
    G11437214Courtesy of MAZDA MOTORS CORP.

    4WD

    Fig 2: No. 1 Engine Mount Rubber And Bolt - 4WD (Front Crossmember Side)
    G11437215Courtesy of MAZDA MOTORS CORP.
  2. Remove the No. 1 engine mount rubber installation bolt (No. 1 engine mount bracket side).

    2WD

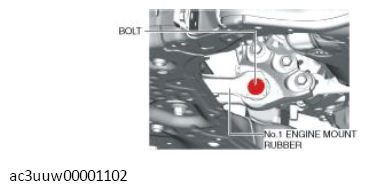

    Fig 3: No. 1 Engine Mount Rubber And Bolt - 2WD (No. 1 Engine Mount Bracket Side)
    G11437216Courtesy of MAZDA MOTORS CORP.

    4WD

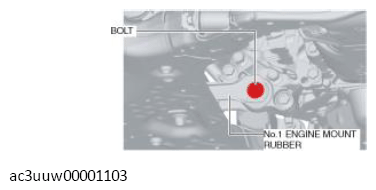

    Fig 4: No. 1 Engine Mount Rubber And Bolt - 4WD (No. 1 Engine Mount Bracket Side)
    G11437217Courtesy of MAZDA MOTORS CORP.
  3. Remove the No. 1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
