Manual Transaxle Shift Mechanism Removal/Installation: Installation

  1. Make sure that the MTX is in neutral position.
  2. Install the control cable using the following procedure:
    1. Install the control cable.
      Fig 1: Installing Control Cable
      G11539870Courtesy of MAZDA
    2. Install the fastening nuts for the grommet.
      Fig 2: Grommet And Fastening Nuts With Torque Specifications
      G09075398Courtesy of MAZDA
    3. Install the fastening nut for the control cable.
      Fig 3: Control Cable Fastening Nuts With Torque Specifications
      G11539867Courtesy of MAZDA
    4. Connect the control cable to the bracket.

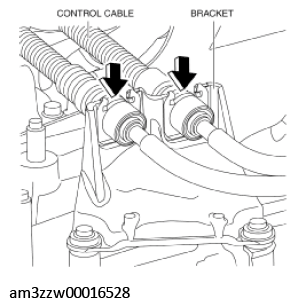

      Fig 4: Control Cable And Bracket
      G11539873Courtesy of MAZDA
    5. Install the control cable end to the MTX.
      Fig 5: Installing Control Cable End To MTX
      G11539874Courtesy of MAZDA
      1. Install the control cable end to the MTX.
      2. Install the lock pin as shown in the figure and lock the control cable end (MTX side).
    6. Install the battery, battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION .)
    7. Install the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Install the shift lever using the following procedure:
    1. Install the shift lever.
      Fig 6: Shift Lever And Nuts With Torque Specifications
      G09075394Courtesy of MAZDA
    2. Install the rear vent duct. (With rear vent) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
    3. Connect the connector to shift lever as shown in the figure.
      Fig 7: Shift Lever And Connector
      G09075393Courtesy of MAZDA
    4. Connect the control cable to the shift lever.
      Fig 8: Control Cable And Shift Lever
      G11539877Courtesy of MAZDA
    5. Connect the control cable end (shift side) to shift lever as shown in the figure.
      Fig 9: Control Cable End (Shift Side) And Bolts With Torque Specifications
      G11539878Courtesy of MAZDA
    6. Use the following procedure to install the control cable end (selector side) to the shift lever.
      NOTE:
      • Because the vehicle may have been moved during the servicing, verify that the shift lever is in neutral again.
      1. Install the control cable end (select side) to the shift lever.
      2. Verify that the shift lever and the manual transaxle are in the neutral position.
      3. Shift the shift lever to fourth gear.
      4. Press in the lock piece in the direction shown in the figure. (1 in Fig.)

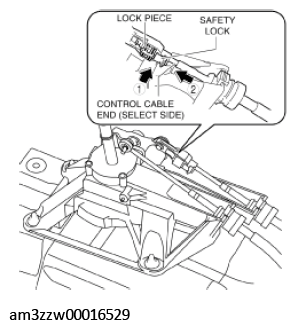

        Fig 10: Pressing Lock Piece
        G11539879Courtesy of MAZDA
      5. Press up the safety lock in the direction shown in the figure. (2 in Fig.)
      6. Shift the shift lever to the neutral position.
    7. Install the rear console. (See REAR CONSOLE REMOVAL/INSTALLATION .)
    8. Install the side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
    9. Install the front console box. (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    10. Install the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)
    11. Install the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    12. Install the shift lever knob.
      Fig 11: Installing Shift Lever Knob
      G11539880Courtesy of MAZDA
    13. Install the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
  4. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
