Front Lower Arm Bushing Installation Note

Install the front lower arm bushing using the SSTs and the press.
CAUTION:
- Install the front lower arm bushing so that the projection shown in the figure is pointing toward the front of the vehicle.
NOTE:
- Applying soapy water to the front lower arm bushing facilitates installation.
- If soapy water gets in the inner pipe of the front lower arm bushing, always wipe it off using a cloth.

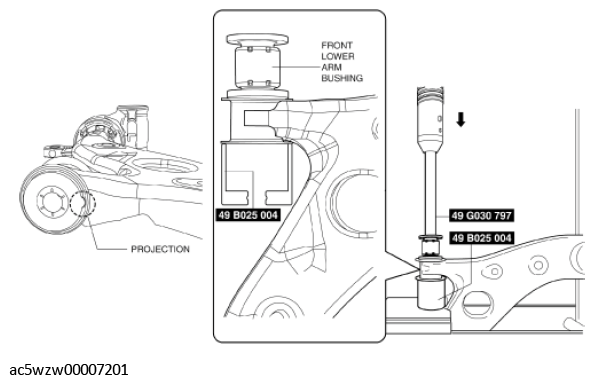

Fig 1: Installing Front Lower Arm Bushing
Courtesy of MAZDA MOTORS CORP.
After installing the front lower arm bushing, verify that it is installed to the position shown in the figure.

Fig 2: Checking Front Lower Arm Bushing Position
Courtesy of MAZDA MOTORS CORP.

W: 5.6±0.8 mm {0.22±0.03 in}
