Hub Support Bushing (Rear) Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the projection of a hub support bushing with the marks placed during removal.

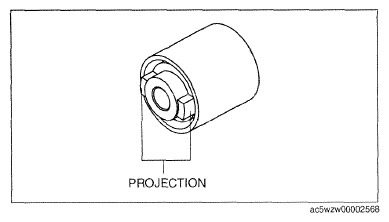

    Fig 1: Identifying Hub Support Bushing Projection
    G09785715Courtesy of MAZDA MOTORS CORP.
  2. Install a new hub support bushing (rear) using the SSTs  .

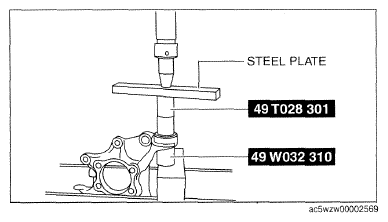

    Fig 2: Installing Hub Support Bushing (Rear) Using SST
    G09785716Courtesy of MAZDA MOTORS CORP.
