Joint Hose Installation Note
Joint Hose Installation Note
Install the joint hose as shown in the figure.

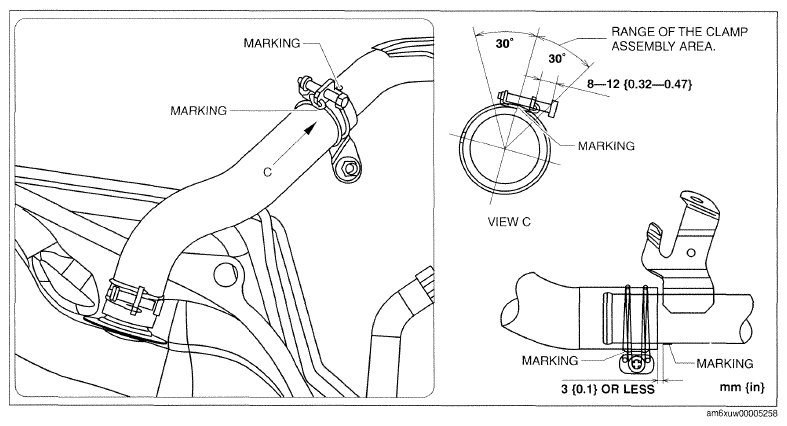

Fig 1: Joint Hose Installation Dimension
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
