U.S.A. and CANADA

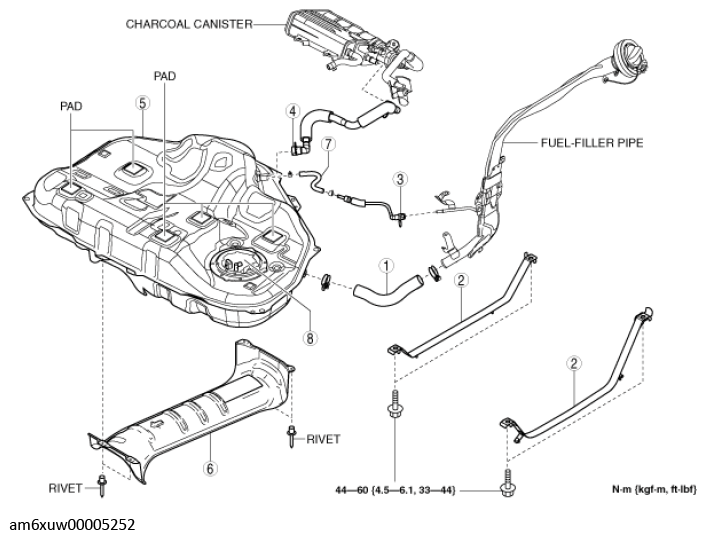

Fig 1: Exploded View Of Fuel Tank Components (U.S.A. And Canada)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint hose (See Joint Hose Installation Note .)
2	Fuel tank strap
3	Breather pipe (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
5	Fuel tank (See Fuel Tank Removal Note .)
6	Fuel tank insulator (See Fuel Tank Insulator Removal Note .)
7	Breather hose (See Breather Hose Installation Note .)
8	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
