Except U.S.A. and CANADA

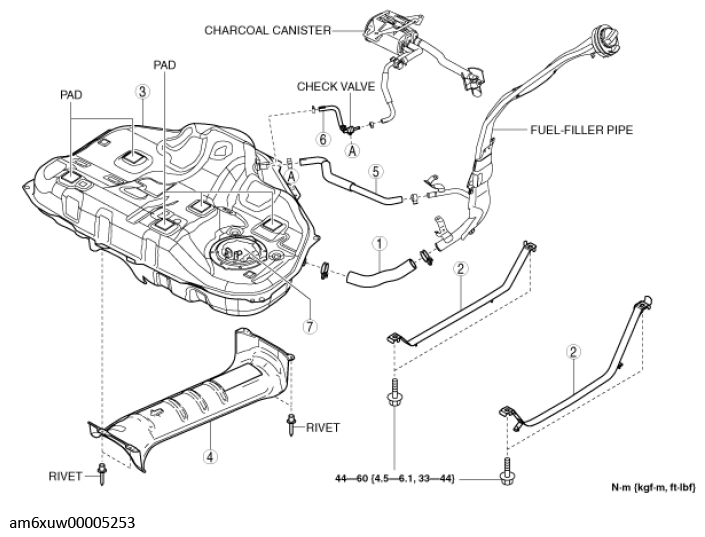

Fig 1: Exploded View Of Fuel Tank Components (Except U.S.A. And Canada)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint hose (See Joint Hose Installation Note .)
2	Fuel tank strap
3	Fuel tank (See Fuel Tank Removal Note .)
4	Fuel tank insulator (See Fuel Tank Insulator Removal Note .)
5	Breather hose (See Breather Hose Installation Note .)
6	Evaporative hose (See Evaporative Hose Installation Note .)
7	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
