Shift Panel Removal/Installation: ATX

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    3. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
  3. Remove the clip.

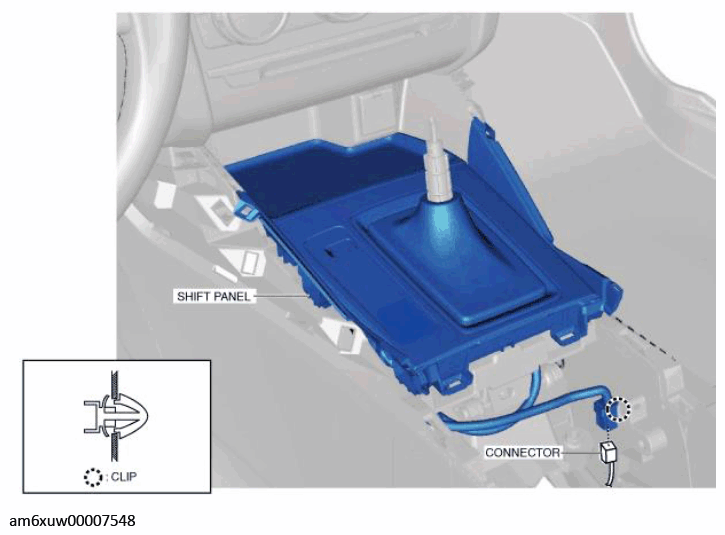

    Fig 1: Removing Shift Panel Connector
    G11544592Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the shift panel in the direction of the arrows in the order of (1), (2) while detaching hooks.

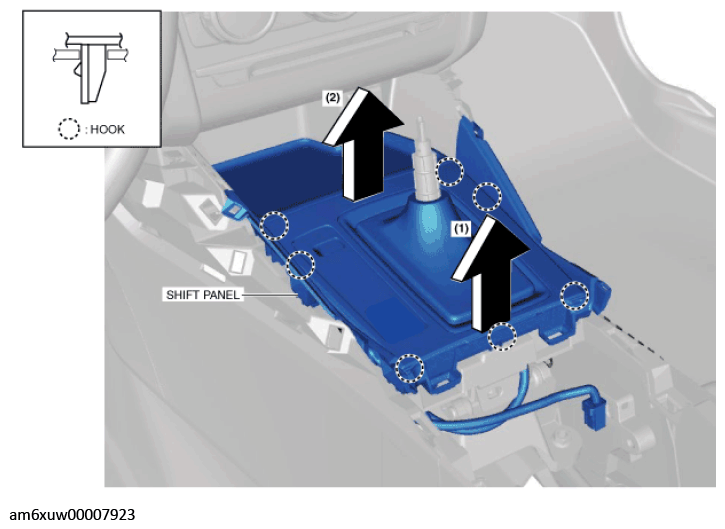

    Fig 2: Removing Shift Panel With Hooks
    G11544593Courtesy of MAZDA MOTORS CORP.
  6. Remove the shift panel in the direction of the arrow shown in the figure, while detaching guides.

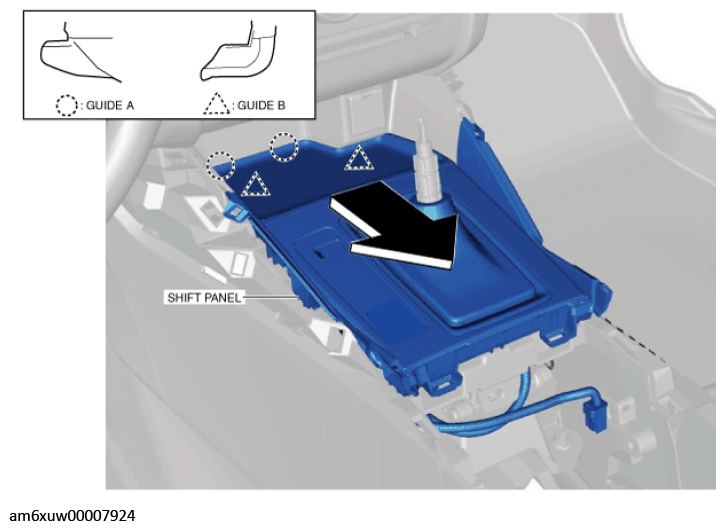

    Fig 3: Removing Shift Panel With Guides
    G11544594Courtesy of MAZDA MOTORS CORP.
  7. While pressing the tab in the directions of arrows (1) shown in the figure, press it up in the direction of arrow (2) and detach the tabs from the shift panel.

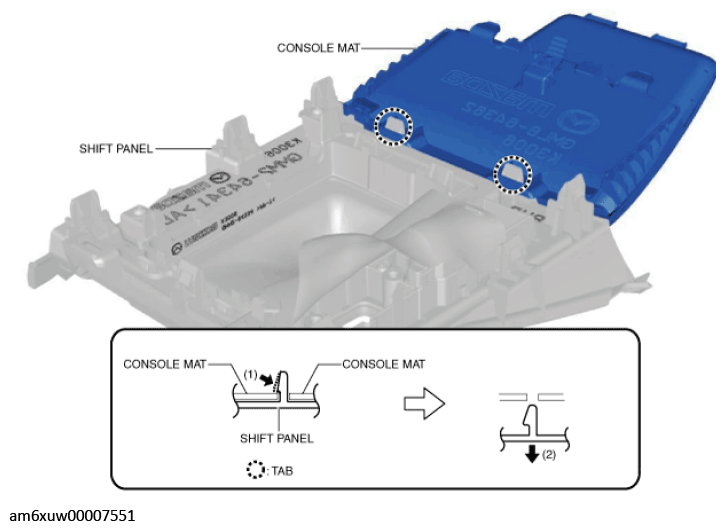

    Fig 4: Detaching Tabs From Shift Panel
    G11544595Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
