Disassembly/Assembly (Driver-side only)

  1. Disassemble in the order indicated in the table.

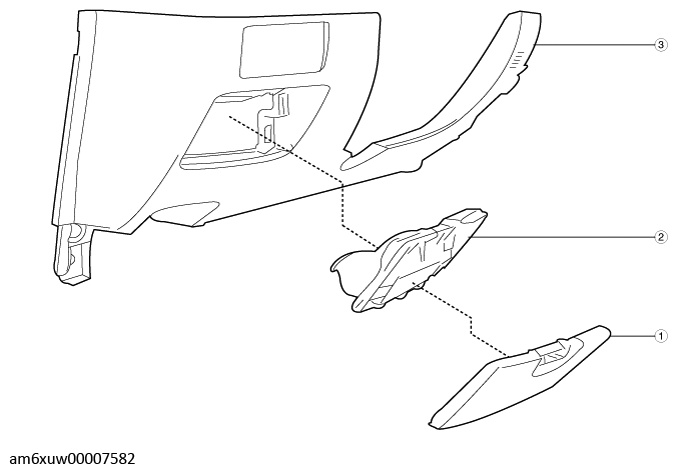

    Fig 1: Pocket Lid, Coin Box And Lower Panel
    G11544570Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Pocket lid
    2 Coin box
    3 Lower panel
  2. Assemble in the reverse order of disassembly.
