Front Door Speaker Inspection: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the front door speaker connector. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)

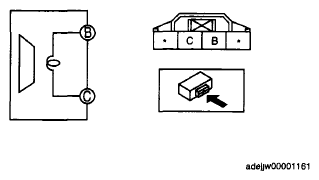

- Verify that the resistance and continuity between the front door speaker terminals is as indicated in the table.
- If not as indicated in the table, replace the front door speaker.
