Rear Center Seat Belt Removal/Installation: Notes

CAUTION:
  • If the retractor is disassembled, it will not operate correctly due to looseness and excessive play of the internal parts, therefore, do not disassemble the retractor.
  1. Switch the ignition off.
  2. Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    2. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .)
    4. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    5. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    6. High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
    7. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  4. Remove the bolts.

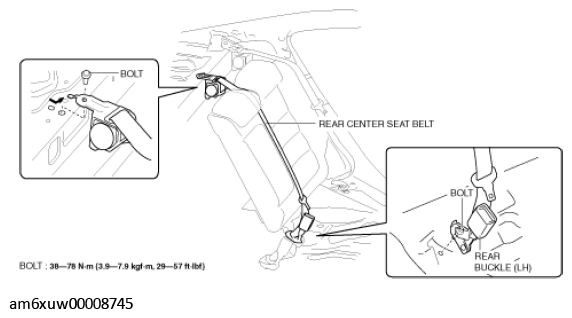

    Fig 1: Removing Rear Center Seat Belt
    G11546171Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear center seat belt with the rear buckle (LH).
  6. Install in the reverse order of removal. (See Rear Center Seat Belt Installation Note .)
