Connector Disconnect Note
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

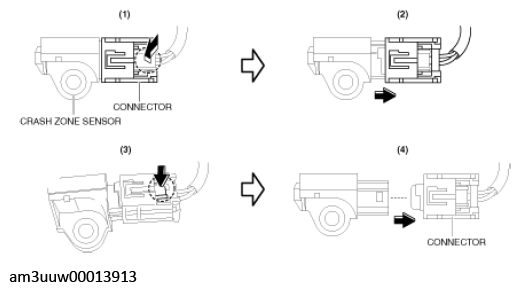

- Press the area (1) indicated by the arrow and slide it as shown in the figure (2).
Courtesy of MAZDA MOTORS CORP.
- Press the area (3) indicated by the arrow and disconnect the connector (4).
