Blower Fan Controller Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing the blower fan controller, perform the procedure in the posture shown in the figure.
Fig 1: Removing Blower Fan Controller
G09786909Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    2. Side wall (passenger-side) (See SIDE WALL REMOVAL/INSTALLATION .)
    3. Front heat duct (passenger-side) (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)

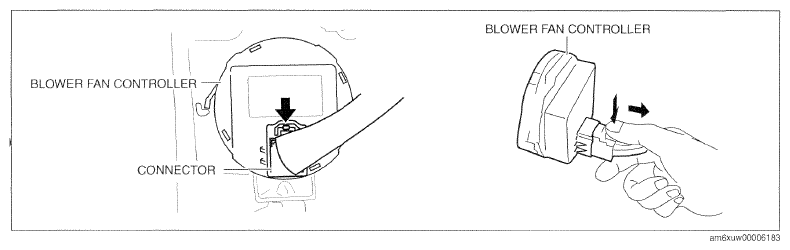

  3. Disconnect the connector.
    Fig 2: Removing Dashboard Under Cover
    G09786910Courtesy of MAZDA MOTORS CORP.

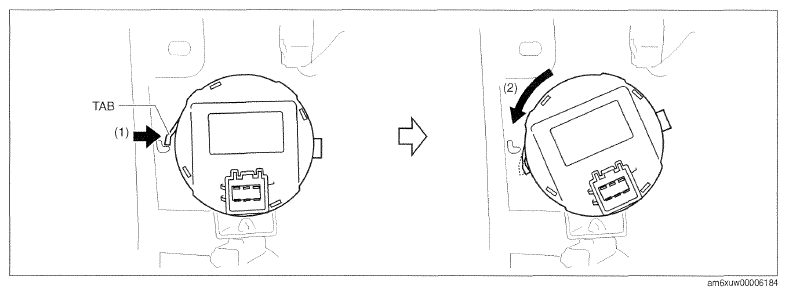

  4. Rotate the blower fan controller (2) while pressing the tab (1).
    Fig 3: Rotating Blower Fan Controller
    G09786911Courtesy of MAZDA MOTORS CORP.
  5. Remove the blower fan controller.
    Fig 4: Removing Blower Fan Controller
    G11529237Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
