Connector Removal Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially peel back the rubber boot in the direction of arrow (1) shown in the figure and remove it from the connector.
  2. Using a tape-wrapped flathead screwdriver, press tabs A in the directions of arrows (2) and (3) shown in the figure and remove the upper part of the connector from the body in the direction of arrow (4).

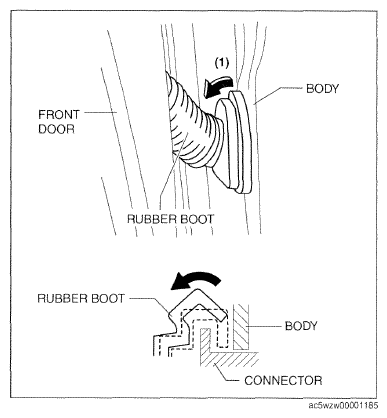

    Fig 1: Removing Rubber Boot
    G09787493Courtesy of MAZDA MOTORS CORP.

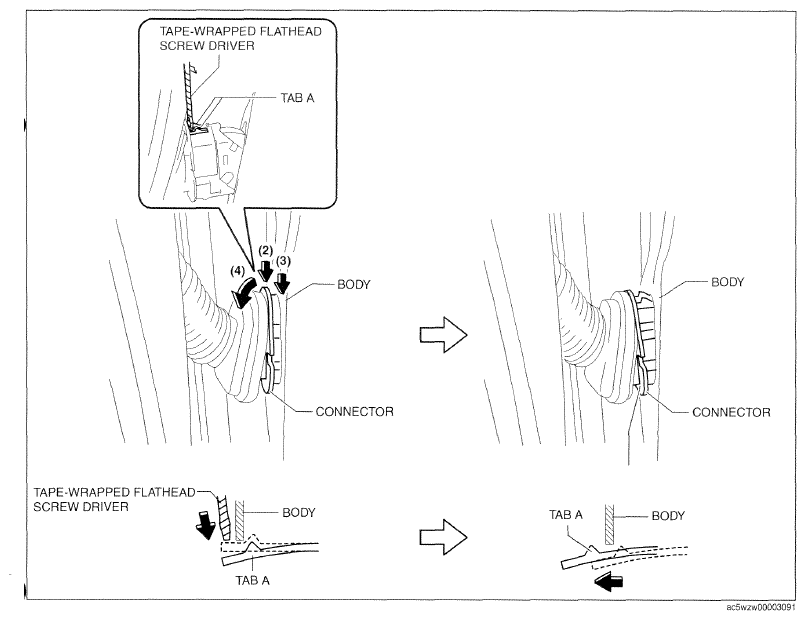

    Fig 2: Removing Upper Part Of Connector From Body
    G09787494Courtesy of MAZDA MOTORS CORP.
  3. Using a tape-wrapped flathead screwdriver, press tabs B in the directions of arrows (5) and (6) shown in the figure and remove the connector from the body in the direction of arrow (7).

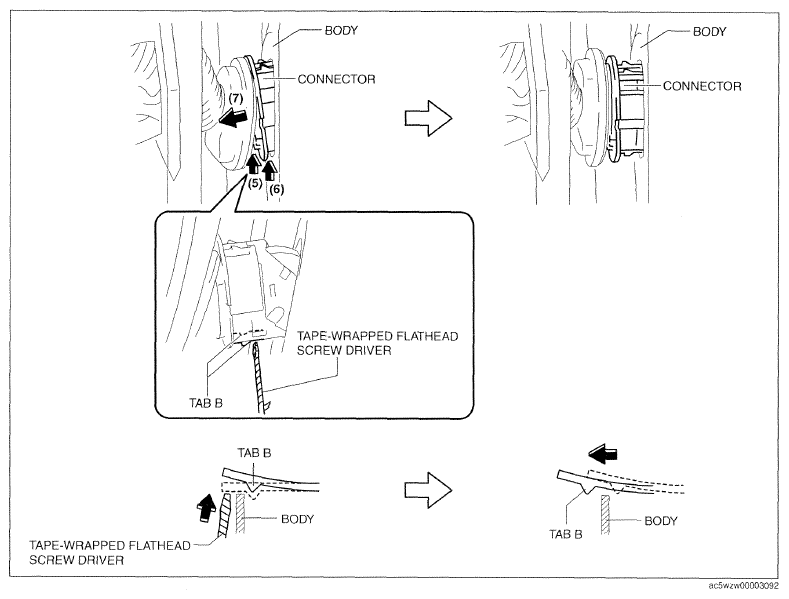

    Fig 3: Removing Connector From Body
    G09787495Courtesy of MAZDA MOTORS CORP.
  4. Lower the lever in the direction of arrow (8), and disconnect the connector in the direction of arrow (9).

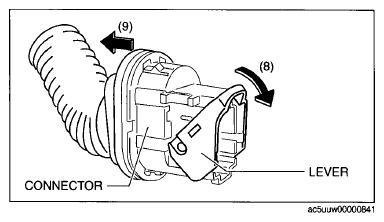

    Fig 4: Disconnecting Connector
    G09076622Courtesy of MAZDA MOTORS CORP.
