With Bose®

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the side speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
  3. While pressing the side speaker grille in the direction of arrow (1) shown in the figure, pull the tweeter in the direction of arrow (2) to detach the tweeter tabs from the side speaker grille.
  4. Remove the tweeter.
  5. Install in the reverse order of removal.

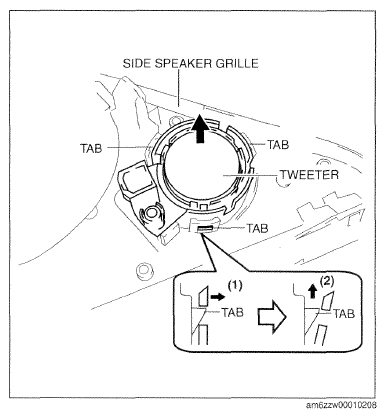

    Fig 1: Removing Side Speaker Grille
    G09788363Courtesy of MAZDA MOTORS CORP.
