Meter Hood Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the driver-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)

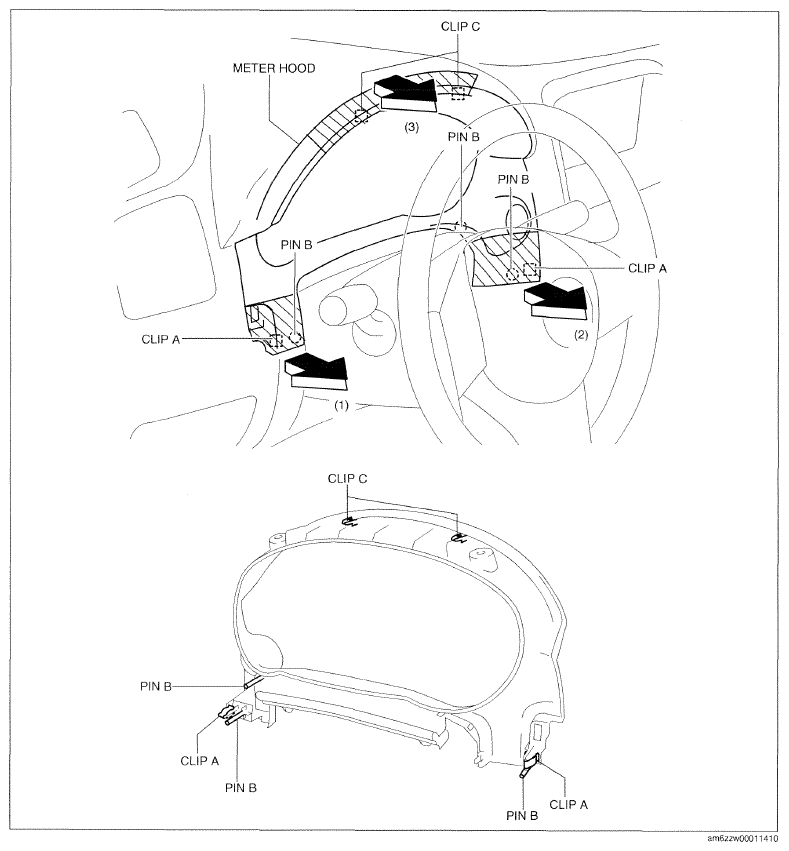

- Grasp the shaded areas shown in the figure, and remove the meter hood in the direction of the arrows in the order of (1), (2), (3) while detaching the clips A, pins B, clips C.
- Disconnect the start switch connector.
- Install in the reverse order of removal.
