Dashboard Under Cover Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

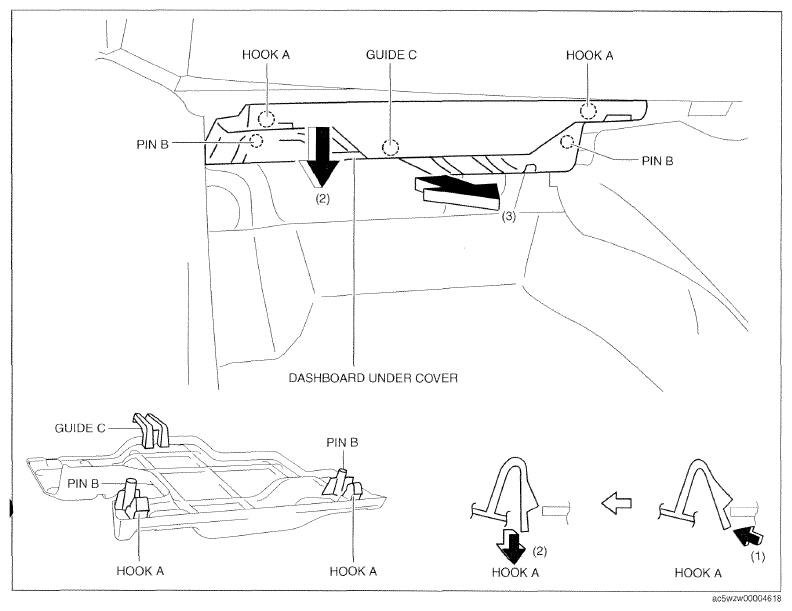

- Detach hooks A in the direction of arrow (1) shown in the figure.
- Pull the dashboard under cover in the direction of arrow (2) while detaching pins B.
- Remove the dashboard under cover in the direction of the arrow (3) shown in the figure while detaching the guide C.CAUTION:
- If hooks A and pins B are removed forcefully, guide C may be damaged. Carefully remove hooks A and pins B so as not to damage guide C.
- Install in the reverse order of removal.
