Lap Pre-tensioner Seat Belt

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fastener.
  2. Remove the cover.
    Fig 1: Identifying Lap Pre-Tensioner Seat Belt, Fastener And Cover
    G09787174Courtesy of MAZDA MOTORS CORP.
  3. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.
  4. Disconnect the lap pre-tensioner seat belt connector.
  5. Connect the SST (Adapter harness)  as shown in the figure.

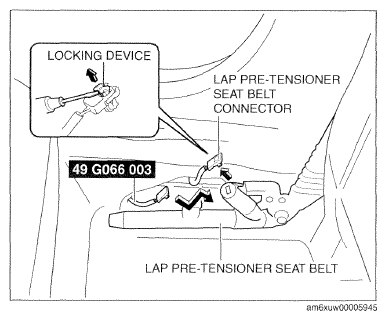

    Fig 2: Disconnecting Lap Pre-Tensioner Seat Belt Connector
    G09787175Courtesy of MAZDA MOTORS CORP.
  6. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .
  7. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  8. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  9. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
    Fig 3: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G09076091Courtesy of MAZDA MOTORS CORP.
  10. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the lap pre-tensioner seat belt.
    WARNING:
    • The lap pre-tensioner seat belt is very hot immediately after it is operated (deployed). You can be burned. Do not touch the lap pre-tensioner seat belt for at least 15 min after deployment.
  11. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .
    Fig 4: Pressing Activation Switch On SST (Deployment Tool) To Operate (Deploy) Lap Pre-Tensioner Seat Belt
    G09787161Courtesy of MAZDA MOTORS CORP.
