U.S.A. and CANADA

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

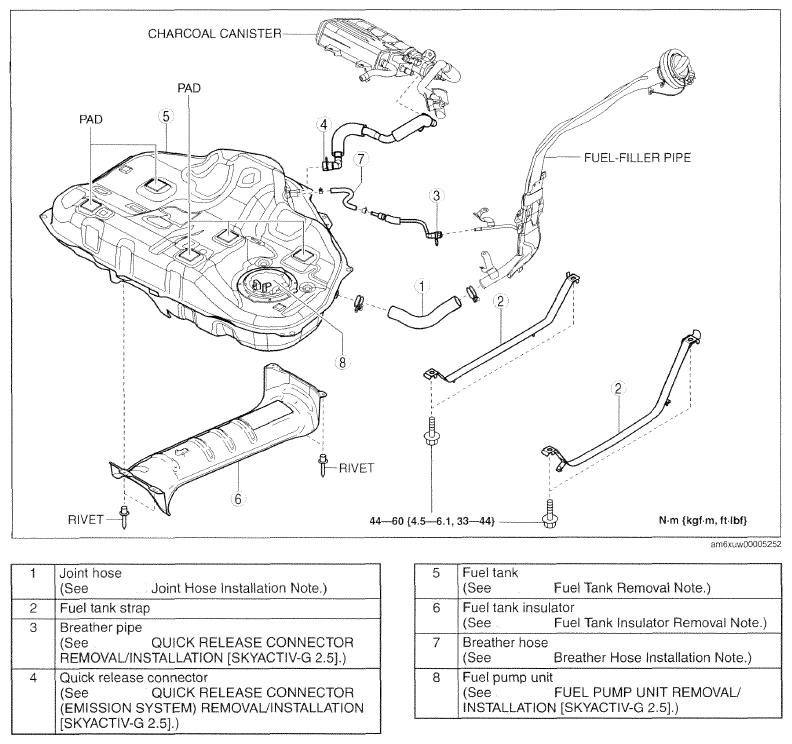

Fig 1: Exploded View Of Fuel Tank (U.S.A. And CANADA) With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
