Passenger Compartment Temperature Sensor Removal/Installation (Auto A/C): Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
- Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
- Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
- Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
- Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
- Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
- Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
- Front scuff plate (driver-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Front side trim (driver-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Fuel filer lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
- Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
- Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION .)

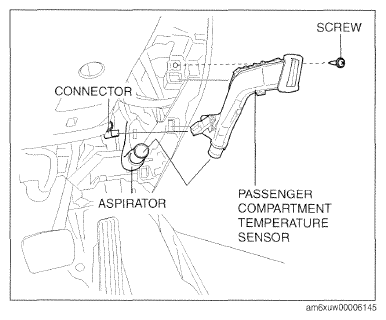

- Remove the aspirator. (See ASPIRATOR REMOVAL NOTE .)
- Remove the screw.
- Disconnect the connector.
- Remove the passenger compartment temperature sensor.
- Install in the reverse order of removal.
