Stator Removal/Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Disconnect the magnetic clutch connector.
Remove the bolts A, B and C.
Loose bolt D approx. 2 mm {0.08 in} .
Tilt the A/C compressor centered around bolt D.

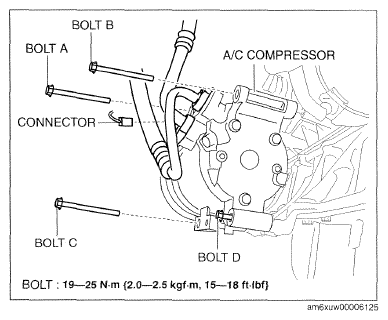

Fig 1: Compressor Mounting With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

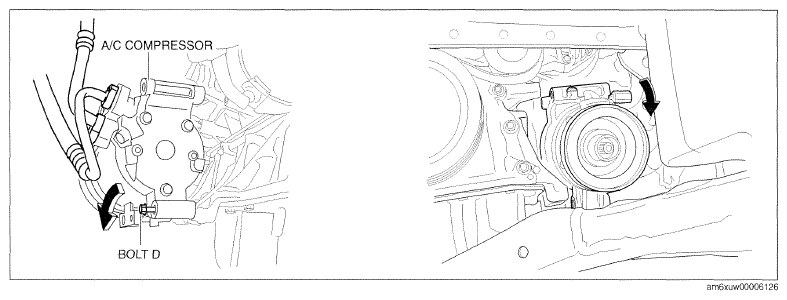

Fig 2: Tilting A/C Compressor Centered Around Bolt D
Courtesy of MAZDA MOTORS CORP.
Remove the screw.

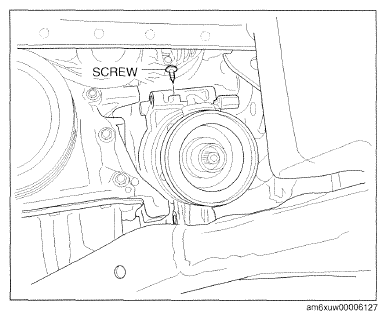

Fig 3: Identifying A/C Compressor Stator Screw
Courtesy of MAZDA MOTORS CORP.
Remove the stator.

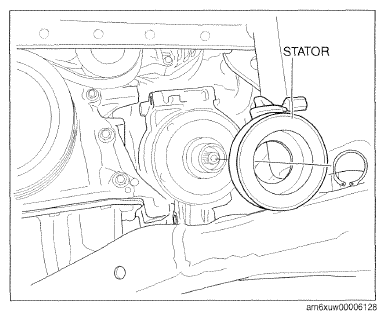

Fig 4: Identifying Stator
Courtesy of MAZDA MOTORS CORP.
