Shim Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

First, insert the 1 mm (0.039 in) thick shim into the shaft.

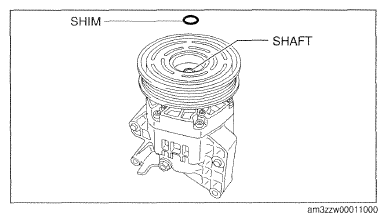

Fig 1: Identifying Shaft Shim
Courtesy of MAZDA MOTORS CORP.

First, insert the 1 mm (0.039 in) thick shim into the shaft.

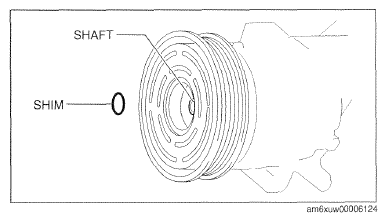

Fig 1: Shaft Shim
Courtesy of MAZDA MOTORS CORP.
