Section 144 (On-Board Diagnostic - Blind Spot Monitoring Control Module)
>>
On-Board Diagnostic Wiring Diagram Blind Spot Monitoring (BSM) Control Module
On-Board Diagnostic Wiring Diagram Blind Spot Monitoring (BSM) Control Module
WARNING:
This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

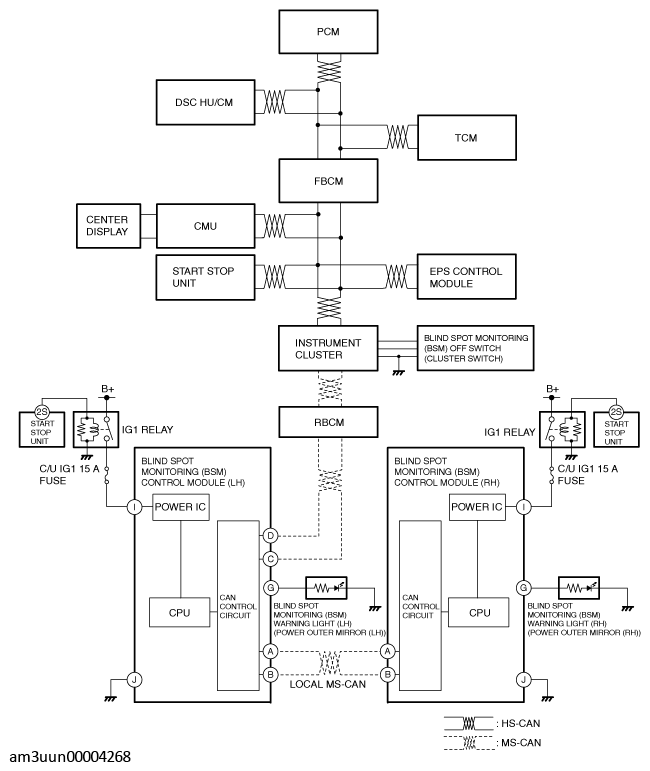

Fig 1: Blind Spot Monitoring (BSM) Control Module - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
