Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.

Cylinder head cover side

Fig 1: Installing Ventilation Hose - Cylinder Head Cover Side
G09786775Courtesy of MAZDA MOTORS CORP.

Air hose side

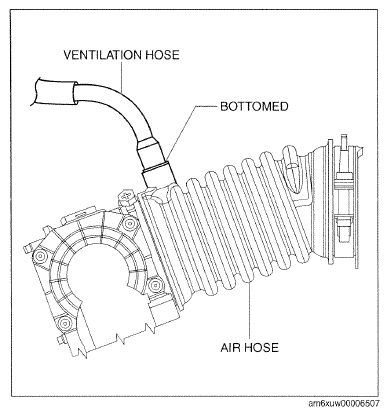

Fig 2: Installing Ventilation Hose - Air Hose Side
G09786776Courtesy of MAZDA MOTORS CORP.
