Vacuum Hose Installation Note
Install the vacuum hose as shown in the figure.

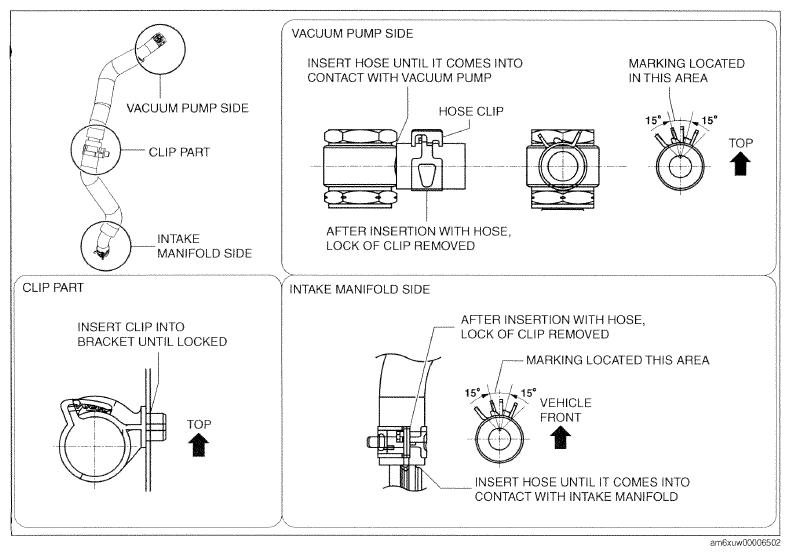

Fig 1: Installing Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
