Fresh-air Duct Removal Note

  1. Pull out the fresh-air duct while pressing the tab shown in the figure.

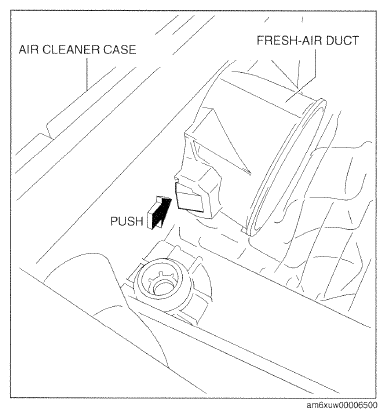

    Fig 1: Pulling Fresh-Air Duct Out While Pressing Tab
    G09786767Courtesy of MAZDA MOTORS CORP.
