Evaporative Hose Installation Note

Install the evaporative hose as shown in the figure.

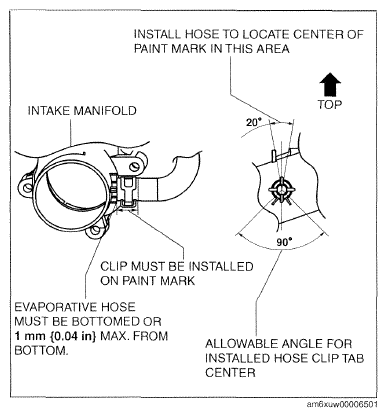

Fig 1: Installing Evaporative Hose

G09786769

Courtesy of MAZDA MOTORS CORP.
