Air Hose Installation Note

  1. Install the air hose as shown in the figure.

Throttle body side

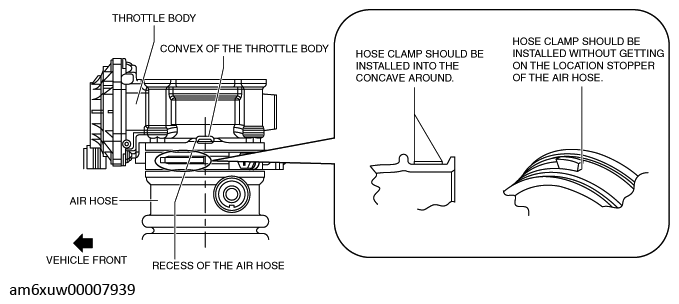

Fig 1: Installing Air Hose - Throttle Body Side
G11546977Courtesy of MAZDA MOTORS CORP.

Air cleaner side

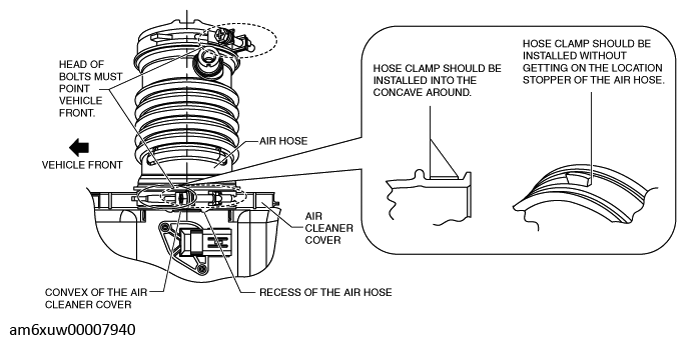

Fig 2: Installing Air Hose - Air Cleaner Side
G11546978Courtesy of MAZDA MOTORS CORP.
