Plug Hole Plate Removal/Installation: Installation

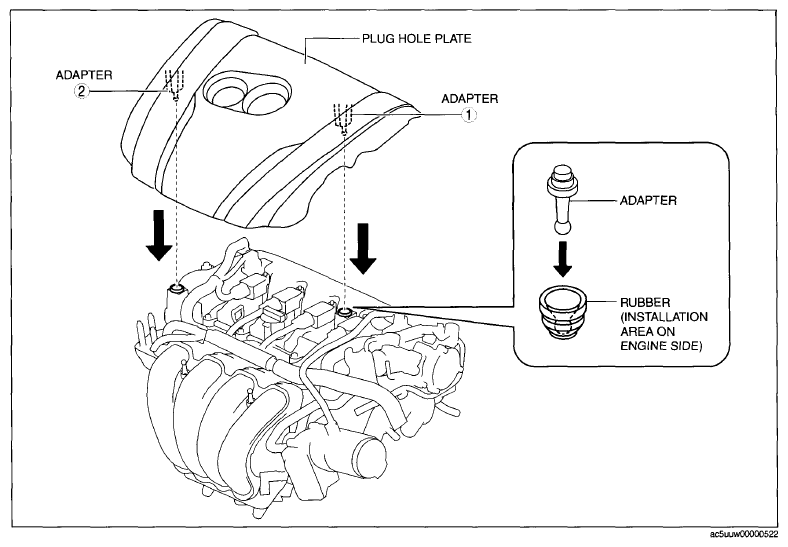

  1. Press the plug hole plate in the order shown in the figure to insert the adapter to the rubber on the engine side.
    Fig 1: Inserting Adapter To Rubber On Engine Side
    G09074085Courtesy of MAZDA MOTORS CORP.

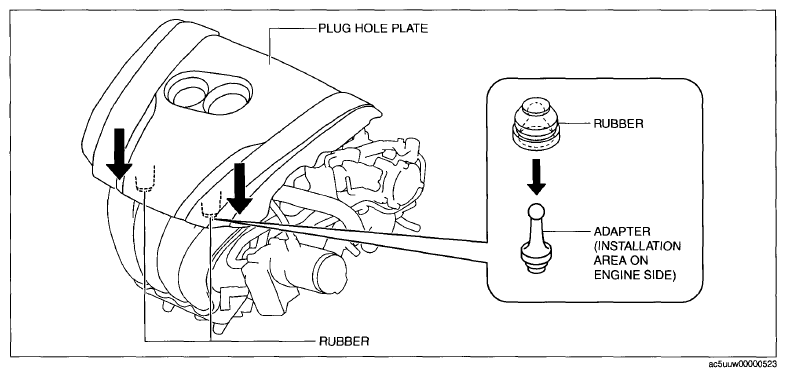

  2. Press the front part of the plug hole plate at the same time to insert the rubber to the adapter on the engine side.
Fig 2: Pressing Front Part Of Plug Hole Plate
G09074086Courtesy of MAZDA MOTORS CORP.
