Exhaust System Insulator Removal/Installation

1. Remove the exhaust system insulator in the order shown in the figure.
2. Install in the reverse order of removal.

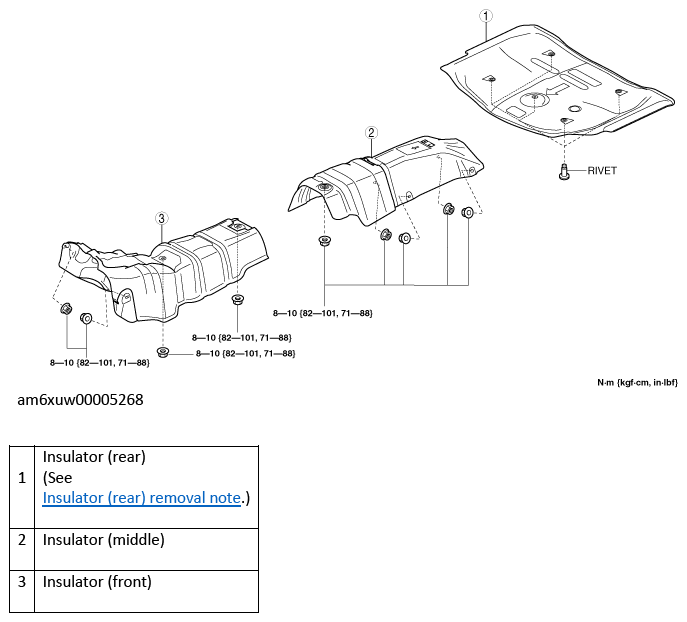

Fig 1: Locating Different Insulators Of Exhaust System

Courtesy of MAZDA MOTORS CORP.
