Oil Pump Driven Sprocket Installation Note

1. Align the marks on each sprocket and the oil pump chain.

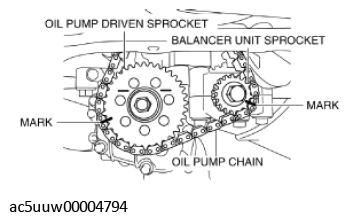

   Fig 1: Aligning Marks On Sprocket And Oil Pump Chain

   Courtesy of MAZDA MOTORS CORP.
2. While pressing the oil pump chain in the direction of the arrow shown in the figure, install the oil pump driven sprocket.

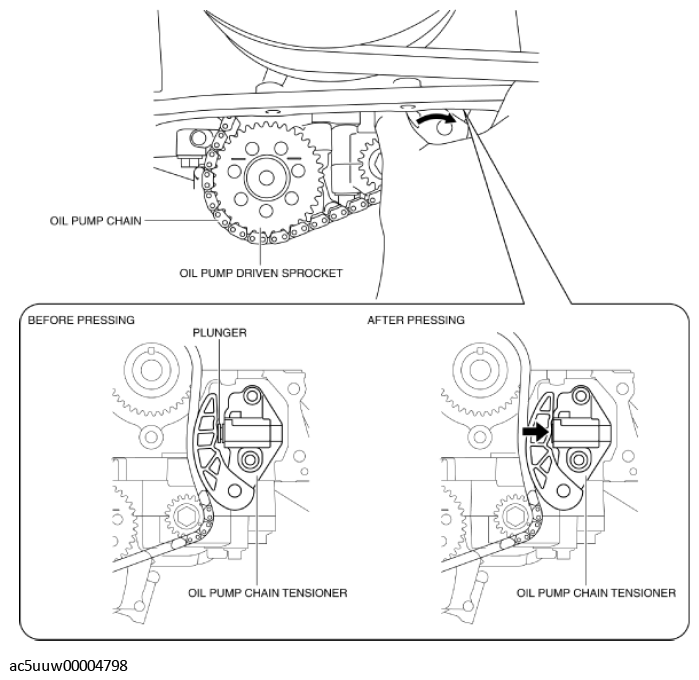

   Fig 2: Installing Oil Pump Driven Sprocket

   Courtesy of MAZDA MOTORS CORP.
3. While locking the oil pump against rotation as shown in the figure, tighten the oil pump driven sprocket installation bolt.

Fig 3: Tightening Oil Pump Driven Sprocket Installation Bolt

Courtesy of MAZDA MOTORS CORP.

Tightening torque

Black bolt: 20-30 N.m {2.1-3.0 kgf.m, 15-22 ft.lbf}

Silver bolt: 26-36 N.m {2.7-3.6 kgf.m, 20-26 ft.lbf}
