Oil Pan Installation Note

1. Completely clean and remove any oil, dirt, sealant or other foreign matter that may be adhering to the cylinder block and oil pan.
2. When reusing the oil pan installation bolts, clean any old sealant from the bolts.
   CAUTION:

   • Apply the silicon sealant in a single, unbroken line around the whole perimeter.
   • To prevent silicone sealant from hardening, adhere the oil pan to the cylinder block within 10 min after silicone sealant is applied. Tighten the installation bolts completely soon after adhering.
   • Using bolts with the old silicone sealant adhering could cause cracks in the cylinder block.
   Fig 1: Locating Old Silicone Sealant Damage Area

   Courtesy of MAZDA MOTORS CORP.
3. Apply silicone sealant to the oil pan along the inside of the bolt holes as shown in the figure.
   CAUTION:

   • For SKYACTIV-G 2.5, also apply silicone sealant to the cylinder block.

   Oil pan

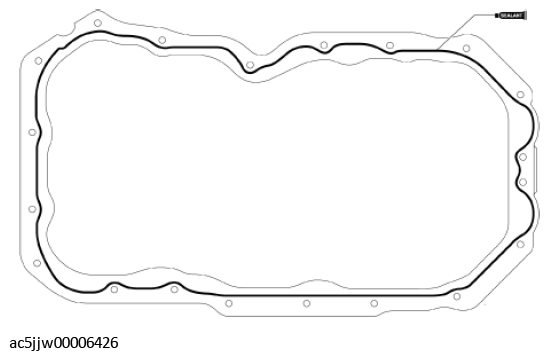

   Fig 2: Silicone Sealant Applying Area To Oil Pan

   Courtesy of MAZDA MOTORS CORP.

   Cylinder block

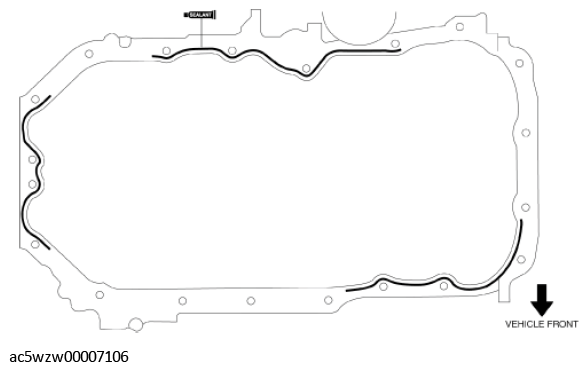

   Fig 3: Silicone Sealant Applying Area To Cylinder Block

   Courtesy of MAZDA MOTORS CORP.

   Thickness

   3.0-7.0 mm {0.12-0.27 in}

4. Install the oil pan using the following procedure:

Fig 4: Removing Silicone Sealant From Oil Pan Installation Bolt Hole

Courtesy of MAZDA MOTORS CORP.

1. Install the oil pan to the cylinder block.
2. Temporarily tighten the two bolts shown in the figure.

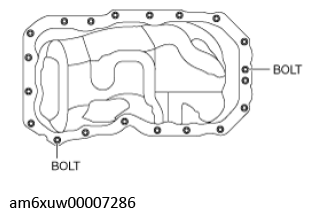

   Fig 5: Locating Oil Pan Bolts

   Courtesy of MAZDA MOTORS CORP.
3. Tighten the bolts in the order shown in the figure

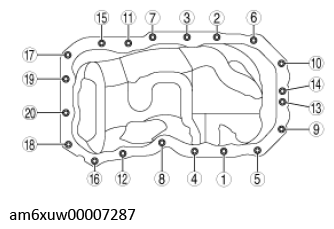

   Fig 6: Oil Pan Bolts Tightening Sequence

   Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
