Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling System (Mechanical)
>>
Engine Cooling System
>>
Radiator Removal/Installation
>>
Radiator Replacement Note
>>
Urethane attachment
Urethane attachment
Attach urethane to the position shown in the figure using the projection as a reference.

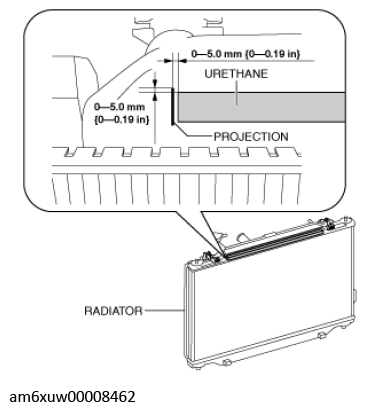

Fig 1: Attaching Urethane To Radiator
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
