Cooling System Location Index

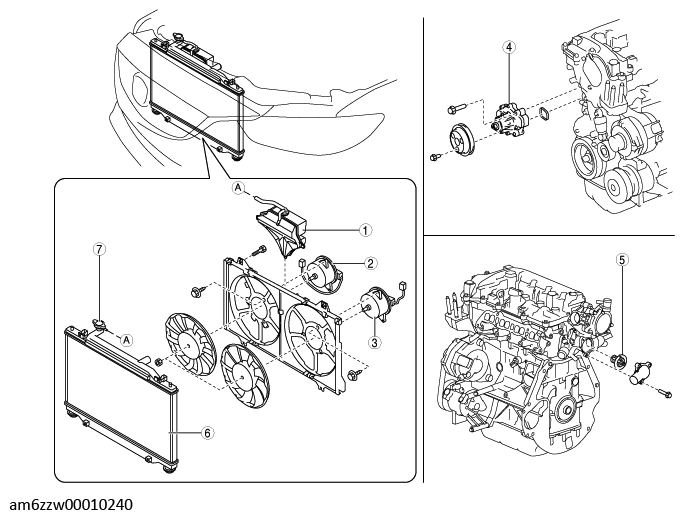

Fig 1: Locating Cooling System Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION .) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
2	Cooling fan motor No. 2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION .) (See COOLING FAN MOTOR INSPECTION .)
3	Cooling fan motor No. 1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION .) (See COOLING FAN MOTOR INSPECTION .)
4	Water pump (See WATER PUMP REMOVAL/INSTALLATION .)
5	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION .) (See THERMOSTAT INSPECTION .)
6	Radiator (See ENGINE COOLANT PROTECTION INSPECTION .) (See ENGINE COOLANT REPLACEMENT .) (See ENGINE COOLANT LEAKAGE INSPECTION .) (See RADIATOR REMOVAL/INSTALLATION .)
7	Cooling system cap (See COOLING SYSTEM CAP INSPECTION .)
