Instrumentation/Driver Info. Location Index: Interior

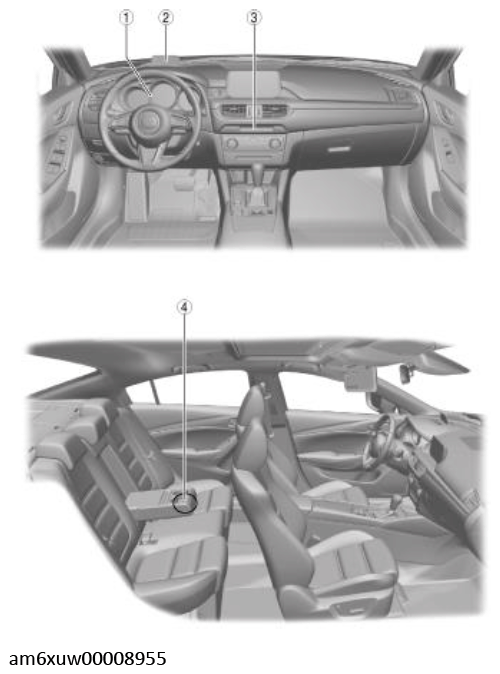

Fig 1: Instrumentation/Driver Information Components (Interior) Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
3	Indicator unit (See INDICATOR UNIT REMOVAL/INSTALLATION .) (See INDICATOR UNIT INSPECTION .)
4	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .) (See FUEL GAUGE SENDER UNIT INSPECTION .)
