Driver's Side

  1. Switch the ignition off (LOCK).
  2. Disconnect the negative battery cable and wait for 1 min. or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Slide the lock in the direction of arrow (1) shown in the figure, and while pressing the tab in the direction of arrow (2), disconnect the connector in the direction of arrow (3).
    Fig 1: Sliding Lock
    G11543609Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts in the order of (1), (2), (3), (4) shown in the figure, then take the front seat out from the opened front door.

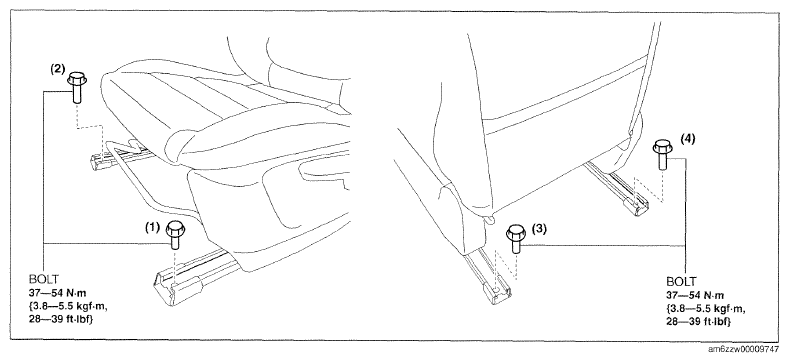

    Fig 2: Removing Front Seat Bolts
    G09787641Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
