Upper Panel Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

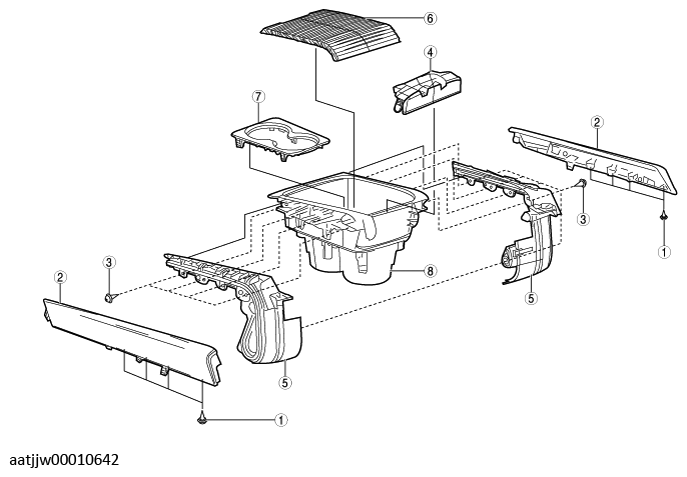

    Fig 1: Exploded View Of Upper Panel
    G11544627Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Console bracket
    3 Screw
    4 Panel up
    5 Rail
    6 Shutter
    7 Console cover
    8 Console box
  2. Assemble in the reverse order of disassembly.
