Rear Console Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

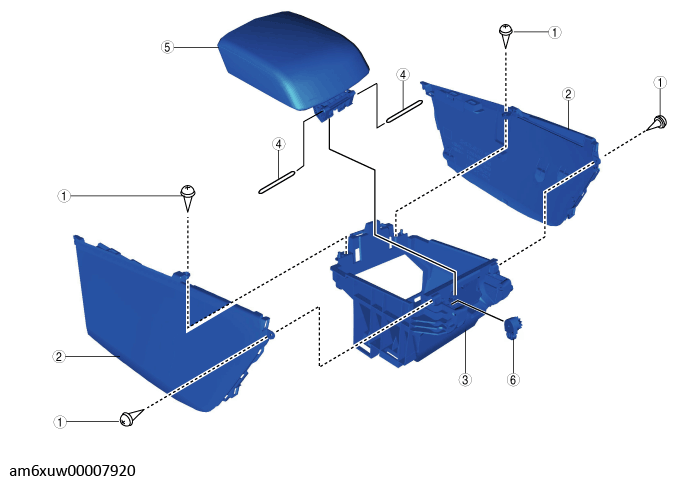

    Fig 1: Exploded View Of Rear Console
    G11544572Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Side panel
    (See Side Panel Removal Note .)
    3 Rear console box
    4 Pin
    5 Rear console lid
    6 Damper
  2. Assemble in the reverse order of disassembly.
