Decoration Panel Disassembly/Assembly

  1. Remove the center ventilator grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
  2. Remove the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
  3. Disassemble in the order indicated in the table.

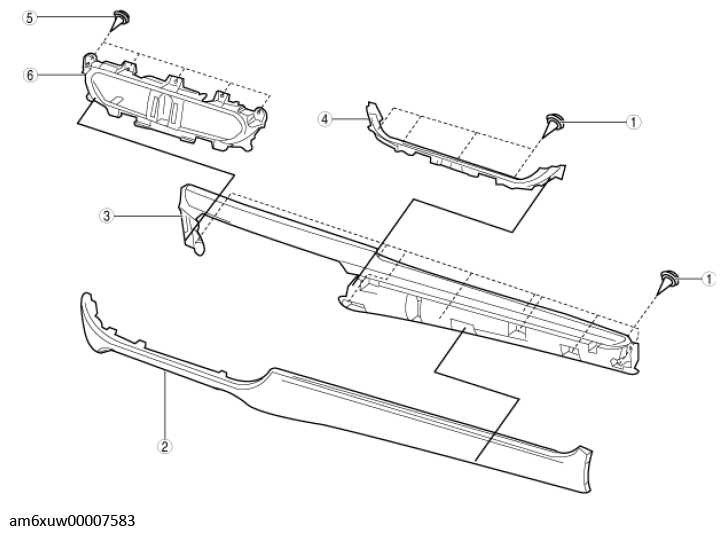

    Fig 1: Exploded View Of Decoration Panel
    G11544521Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Partition plate
    3 Decoration plate
    4 Bezel
    5 Screw
    6 Center ventilator grille bracket.
  4. Assemble in the reverse order of disassembly.
