Pilot Bearing Inspection

Without removing the pilot bearing, turn the bearing while applying force in the axial direction.

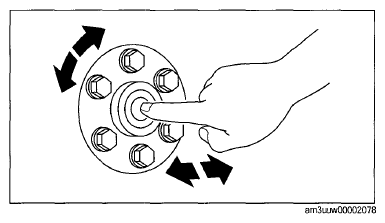

Fig 1: Applying Force To Pilot Bearing In Axial Direction
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the pilot bearing. (See CLUTCH UNIT REMOVAL/INSTALLATION .)
