Pilot Bearing Installation Note

1. Install new pilot bearing to the specified position using the following tools.

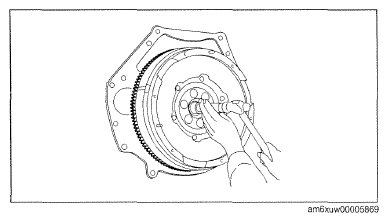

Fig 1: Installing Pilot Bearing To Specified Position

Courtesy of MAZDA MOTORS CORP.

Tool

Snap-on brand millimeter size bushing driver set (A160M) adapter A160M7 (20-22 mm)

• Use the adapter with the 20 mm side of the A160M7 (20-22 mm) facing the pilot bearing side.

  Substitution tool

  Outer diameter: 21 mm {0.83 in}

  Inner diameter: 19 mm {0.75 in}

  Standard position

  Distance A of pilot bearing from crankshaft end: 1.5-2.5 mm {0.060-0.098 in}

Fig 2: Checking Distance Between Crankshaft End And Pilot Bearing

Courtesy of MAZDA MOTORS CORP.
